380V 50-60Hz 2.2KW/3HP 1450r/min 48 m3/h 14m submersible sewage pump with cast iron pump body 100C4-2.2 manufacturer from China ZHEJIANG DAYUAN PUMPS INDUSTRIAL CO.,LTD

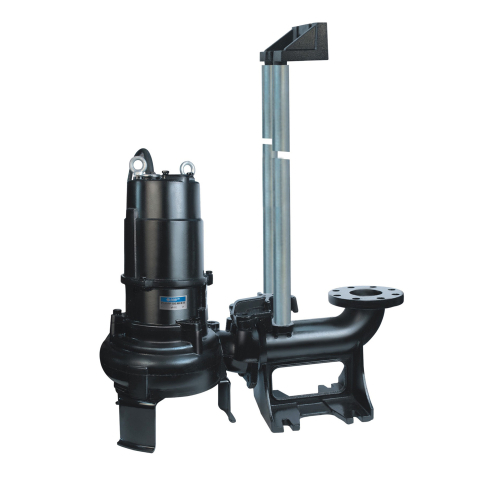

380V 50-60Hz 2.2KW/3HP 1450r/min 48 m3/h 14m submersible sewage pump with cast iron pump body

Price:	200.0~210.0 USD
Payment Terms:	T/T,L/C
Special Groups:	Cast Iron Impeller (4)
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 100C4-2.2

Production Capacity: 1,600,000 pcs/year

Delivery Date: 35 days after receiving the...

Certification: CE

Pump Body: Cast Iron

Seals: Dynamic and Static Seals

Protection Class: IP68

Means of Transport: Ocean,Land,Air

Packing: Carton

Type: Submersible Sewage Pump

Brand Name: DAYUAN PUMP

Impeller: Cast Iron

Insulation Class: E

It is submersible sewage pump uses bipolar motor, which especially fits for carrying slurry, motor, daily sanitary wastewater, and sewage.

Product Overview:

The motor stator of submersible sewage pumps 100C (hereafter referred as electric pump) is three-phase asynchronous, which lies in the upper part of electric pumps, . The hydraulic part seated under the motor stator, which function is to use the impeller blase and the multi-angled imports of base to cut fibrous debris. The dynamic seals between the hydraulic part and motor are double mechanical seal and oil seal. The static seals are oil resistant rubber "O" rings.

This product has passed CE certification with 1 year quality warranty.

Application Area:

For usage of industry, agriculture, mine, building construction, environmental protaction. Especially fit for carrying slurry, mortar, daily sanitary wastewater, and sewage containing flocks, paper scraps, mud and sand and other solid particles. Also fit for dredging.

Operating Limits:

Trans medium's PH: 4-10

Fluid temperature limit:<40℃

Max ambient temperature: <40℃

Operating depth: 5m

Structural Characteristics:

Insulation class: E

Protection Class: IP68

Process Flow: pipe-line, auto painting

Model Analysis:

SUBMERSIBLE SEWAGE PUMP SERIES
MODEL	POWER		rpg	Q(m3/h)	0	6	12	18	24	30	36	42	48	54	60	G.W.	QTY
Three phase	KW	HP	r/min	l/min	0	100	200	300	400	500	600	700	800	900	1000	(kg)	(set)
80C2-1.5	1.5	2	2900	H(m)	13	12	11	9	8	7	6					75	250
100C4-2.2	2	3	1450		14	12.5	11.5	10	9.5	9	8	7.5	7			87	210
100C4-3.7	3.7	5	1450		17	16	15	14	13.5	13	12	11.5	11	10	9	92	200
