ZHEJIANG DAYUAN PUMPS INDUSTRIAL CO.,LTD
|

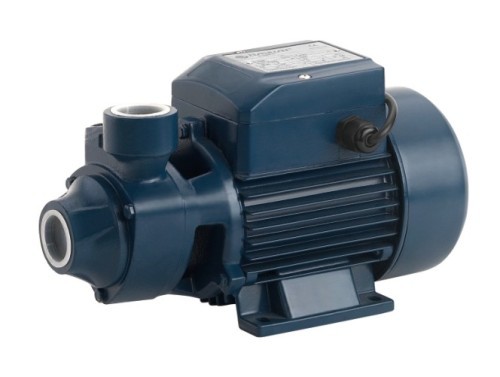

clean water pump micro vortex pump with cast iron pump body brass impeller
| Price: | 20.0~23.0 USD |
| Payment Terms: | T/T,L/C,D/A |
| Special Groups: |
Brass Impeller (7)
clean water pump (9) |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
This product is clean water pump and mainly used in agriculture for pressurizing the water , water supply and drainage.
Product overview:
The motor stator of micro vortex pump series (hereafter referred as electric pump) is single phase asynchronous. The dynamic seal is mechanical seal and the static seals are oil resistant rubber "O" rings.
This product has passed CE certification with 1 year quality warranty.
Process flow: pipe-line; auto painting
Application area:
Clean water without abrasive particles. Mainly used for pressurizing the water, cooling the circulating water; supplying the water for boilers and other non-centrifugal requirements water supply and drainage.
Operating limits:
Trans medium's PH: 6-8.5
Fluid temperature limit: 40℃
Max ambient temperature: 55℃
Structural characteristics:
1. Brass impeller
2. Stainless steel shaft/ carbon steel shaft
3. NSK/ C&U bearing
4. Insulation class: B
5. Protection class: IP44
| MICRO VORTEX PUMP SERIES | ||||||||||
| PERFORMANCE CHART AT n=2900r/min | ||||||||||
| MODEL | POWER | INLET/OUTLET | MAX. FLOW | MAX. HEAD | MAX. SUCTION | G.W. | PACKING DIMENSION | QTY | ||
| Single phase | KW | HP | (l/min) | (m) | (m) | (kg) | (mm) | (set) | ||
| DKm60 | 0.37 | 0.5 | 1"*1" | 40 | 40 | 8 | 6 | 283*152*174 | 3300 | |
| DKm70 | 0.6 | 0.8 | 1"*1" | 50 | 65 | 8 | 9.5 | 325*180*210 | 2360 | |
| DKm80 | 0.75 | 1 | 1"*1" | 60 | 70 | 8 | 11.2 | 345*180*210 | 2220 | |
| DKm60-1 | 0.37 | 0.5 | 1"*1" | 40 | 40 | 8 | 6 | 283*152*174 | 3300 | |
| DKm70-14 | 0.6 | 0.8 | 1"*1" | 50 | 65 | 8 | 9.5 | 325*180*210 | 2360 | |
| DKm80-1 | 0.75 | 1 | 1"*1" | 60 | 70 | 8 | 11.2 | 345*180*210 | 2220 | |
